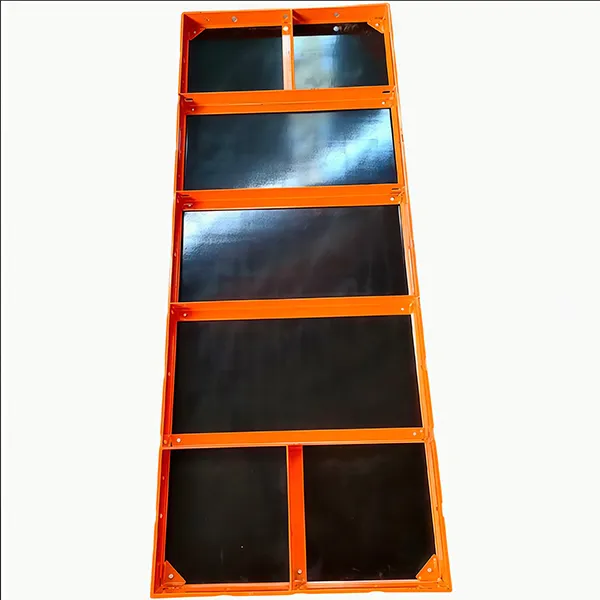

Steel frame formwork system

Specifications of Steel frame formwork system

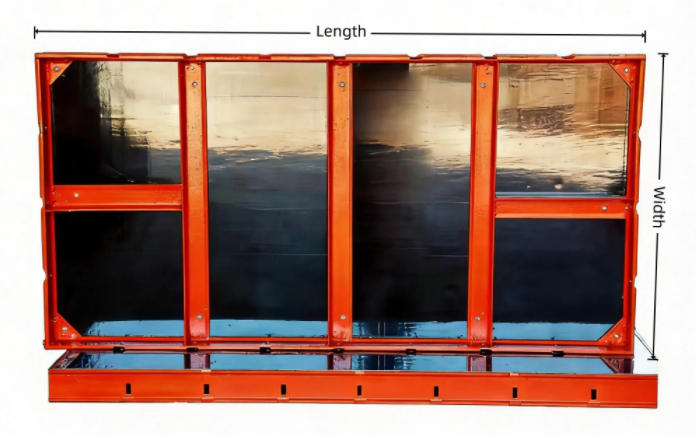

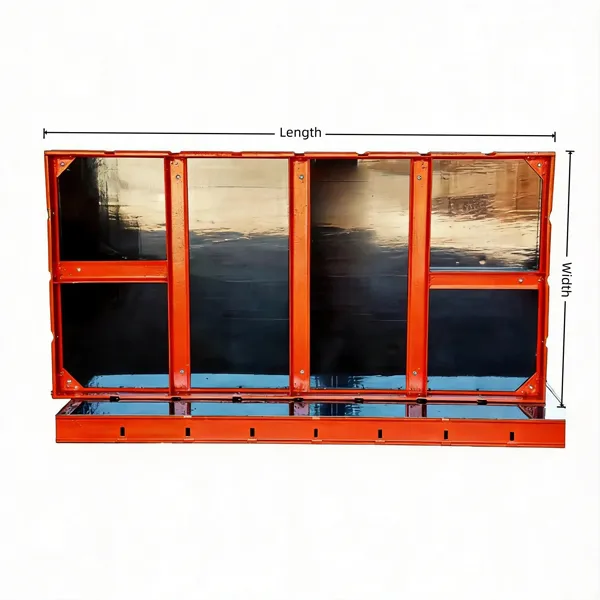

Template General Specifications
Width\Length（mm）	900	1200	1500
200	8.7kg	11.1kg	12.8kg
250	9.6kg	12.0kg	14.6kg
300	10.1kg	12.8kg	16.0kg
350	11.0kg	13.7kg	17.0kg
400	11.9kg	14.6kg	17.8kg
450	12.4kg	15.5kg	18.7kg
500	13.3kg	16.9kg	20.1kg
600	14.6kg	19.0kg	23.0kg

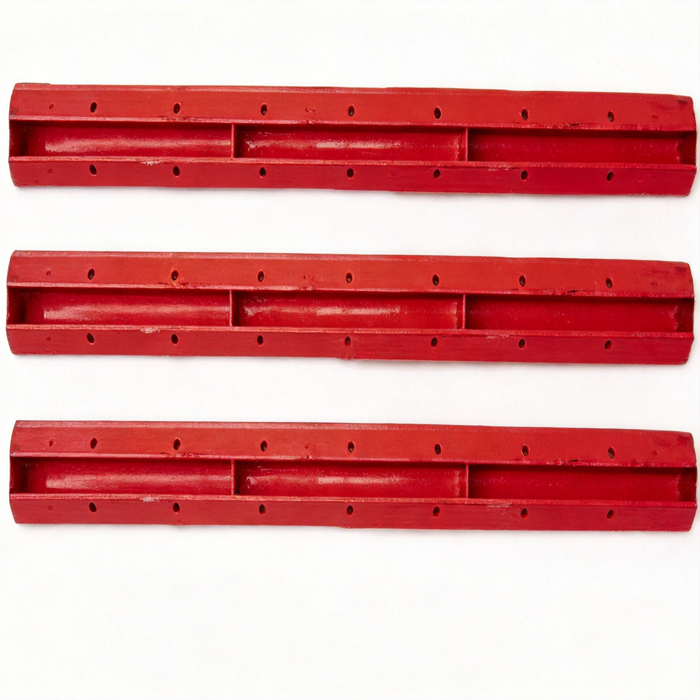

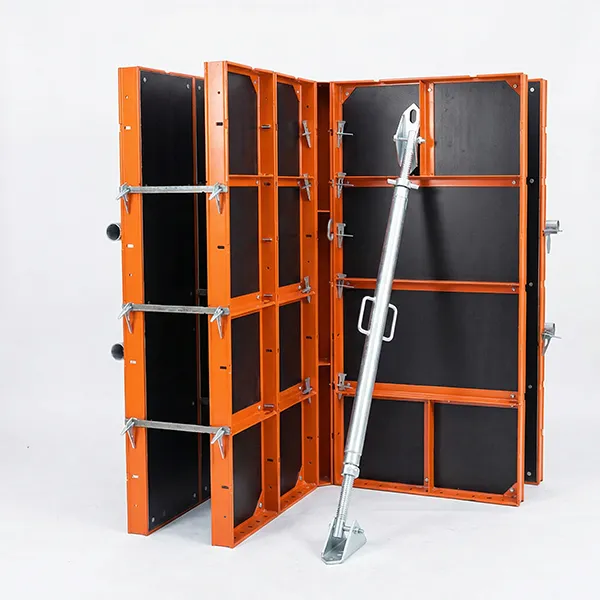

General specifications for interior corner templates
Length	Width	Weight
100	100	9.66kg
100	150	12.07kg
150	150	15.82kg
100	200	12.66kg

Advantages of steel frame formwork

• Higher Working Efficiency

The steel frame formwork system features high overall rigidity, allowing for larger tie rod spacing. This reduces the number of tie rods required, lowers labor costs, and saves significant time during formwork erection.

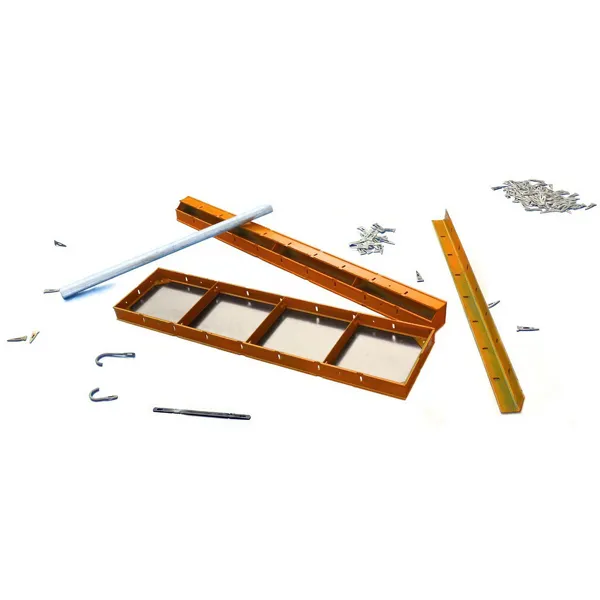

• Fast Assembly and Dismantling

With a limited number of panel sizes, the formwork panels can be placed both vertically and horizontally. Connected by quick clamps, the system can be rapidly assembled into large-area formwork of various dimensions.

All connection and dismantling operations can be completed with only a hammer, making installation quick and efficient.

• Efficient Integrated Lifting

The system can be seamlessly connected with alignment props, walers, and platform brackets, enabling integrated lifting of the entire formwork unit, which greatly improves installation efficiency.

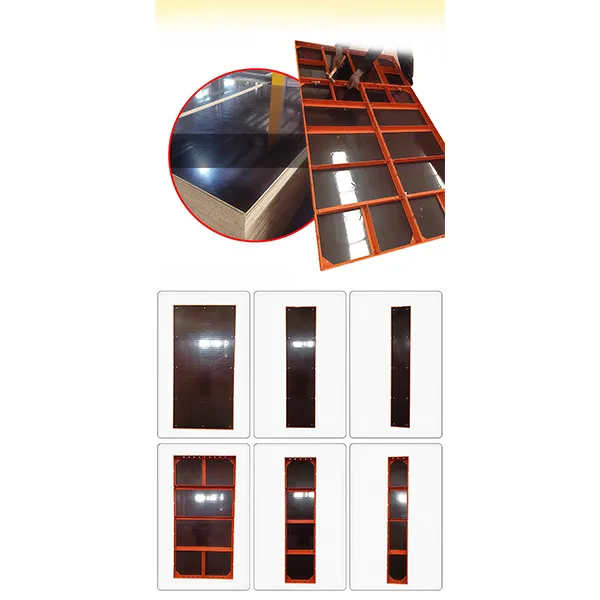

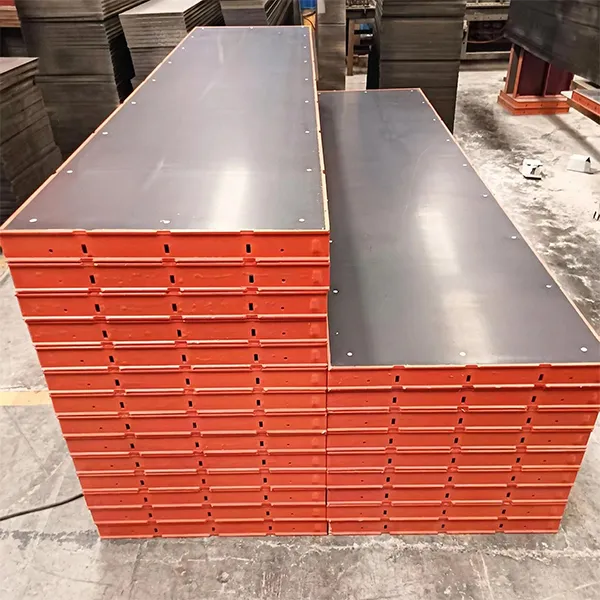

• Modular Design

The modular design allows the panels to perfectly adapt to various wall dimensions. It also facilitates efficient planning for packaging and transportation.

The finished concrete surface features neat and uniform joint lines, ensuring excellent surface quality.

• Durable and Easy Maintenance

The panels are made of waterproof plywood with a plastic-coated surface. With a small amount of release agent applied, the panel surface requires minimal cleaning after formwork removal.

The panels are highly durable and can theoretically be reused more than 50 times.

Maintenance is simple—minor scratches or holes can be quickly repaired, and replacing an entire panel is convenient.

• High Load Capacity

The custom-profile steel frame provides high structural strength. The system can withstand a maximum concrete lateral pressure of up to 60 kN/m².

It is compatible with both steel formwork and timber formwork systems and can be used for curved concrete structures, such as those found in hydropower plants and infrastructure projects.

• Suitable for Narrow Interior Spaces

Thanks to its thinner panel thickness, the formwork system is especially suitable for structures with limited internal space, allowing easier installation and operation in confined areas.
