Steel Frame Formwork System: Precision Solution for High-Quality Concrete Structures

In modern construction, the quality of concrete formation directly determines the durability and appearance of a structure.

The Steel Frame Formwork System, with its high reusability, superior surface finish, and strong resistance to concrete pressure, has become the preferred solution for vertical structural works such as shear walls, columns, and foundations in medium to large-scale projects worldwide.

What is Steel Frame Formwork?

Definition:
Steel frame formwork is a modular panel system composed of high-strength steel frames combined with plywood or composite facing panels.

It is designed to shape and support concrete structures during pouring, ensuring:

• Accurate dimensions

• Smooth surface finishes

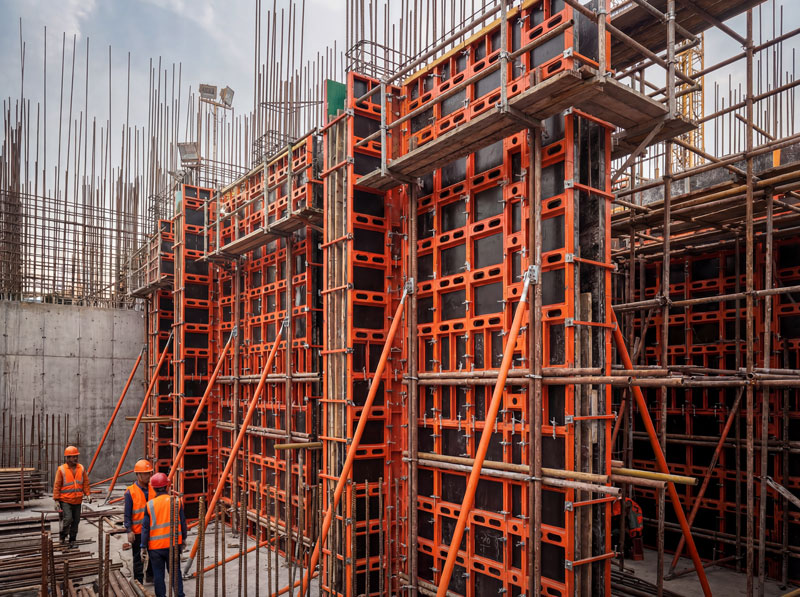

On construction sites, these modular panels are securely connected using standardized connectors, forming a rigid system that remains stable even under high-pressure concrete pumping conditions.

Key Applications

Shear Walls in High-Rise Buildings

Ensures consistency and vertical alignment from bottom to top, significantly reducing the need for additional plastering.

Columns & Core Walls

The modular design allows quick adjustment for different column sizes, making it ideal for bridges, commercial buildings, and structural cores.

Foundations & Ground Beams

High rigidity ensures dimensional accuracy even under complex underground pressure conditions.

Why Choose Steel Frame Formwork?

Superior Concrete Finish

The steel frame combined with high-quality facing panels minimizes leakage and deformation, producing smooth, high-quality concrete surfaces that may eliminate the need for secondary finishing.

High Reusability

Compared to traditional timber formwork, which is often discarded after limited use, steel frame systems can be reused hundreds of times with proper maintenance, significantly reducing cost per use.

Fast Modular Assembly

Using standardized pins or clamps, the system eliminates on-site cutting and fitting.
This modular “plug-and-play” approach can reduce formwork installation time by over 40%.

High Pressure Resistance

The reinforced steel frame structure can withstand concrete lateral pressures of up to 60 kN/m² or higher (depending on system specifications), making it suitable for large-volume and fast-paced concrete pouring.
