In concrete construction, formwork is not just a temporary structure. It directly affects pouring efficiency, dimensional accuracy, surface finish, labor input, and project rhythm. For contractors and buyers working on walls, columns, and foundations, a steel frame formwork system is often chosen when the project requires repeatability, faster setup, and more reliable performance under concrete pressure. Our steel frame formwork system is a high-strength solution with modular sizing, multiple panel material options, and allowable pressure up to 60–80 kN/m² depending on configuration.

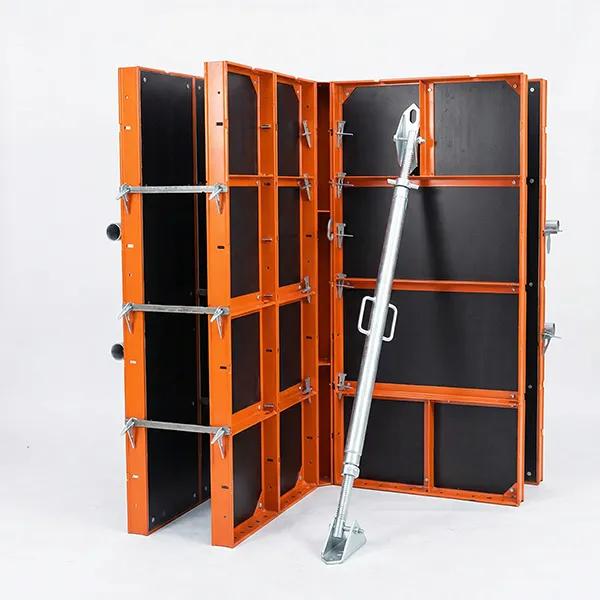

A steel frame formwork system is a modular concrete forming solution built around a rigid steel frame and a facing panel. The frame is constructed from high-strength steel with a 63 mm profile depth, while the panel material can be bamboo plywood formwork, film faced plywood, steel, or advanced composite plastics. Standard heights include 900 mm, 1200 mm, and 1500 mm, while standard widths range from 200 mm to 600 mm, giving buyers a practical panel matrix for wall and structural layout planning.
For B2B buyers, this matters because modularity reduces dependence on site-made adjustments. Instead of building formwork from scratch for each pour, project teams can combine standard panels with accessories such as tie rods, hooks, wedge pins, and related connectors to create a more predictable and repeatable system. We utilize automated robotic CO2 gas shielded welding and a water-based dip coating process, ensuring consistent quality and durability.
One of the main reasons buyers move from basic timber-heavy forming methods to modular steel frame systems is rigidity.This system delivers exceptional overall rigidity, allowing for larger tie rod spacing and concrete pressure resistance up to 60–80 kN/m². In practical terms, this supports more stable forming during pouring and helps reduce deformation risk in demanding wall and vertical structure applications.
Labor efficiency is a major procurement concern, especially on projects with repetitive pours or tight schedules. Designed around a limited number of standard sizes, panels can be placed vertically or horizontally using quick clamps. Furthermore, connection and dismantling require only a hammer.
Concrete finish quality affects not only appearance but also rework cost. The precision engineering ensures neat, uniform joint lines and excellent surface quality. With proper maintenance, panels can be reused 50+ times, and the steel frame boasts a lifespan exceeding 5 years.
A common challenge in wall and structural work is adapting formwork to different dimensions without creating excessive waste or complicated field adjustments. The product page specifically describes the system as modular and suitable for various wall dimensions. It also mentions that the thinner panel thickness makes it suitable for narrow interior spaces, which is a useful point for projects with confined working areas.
Steel frame formwork is generally a strong fit for vertical and structural concrete work where alignment, reusability, and site efficiency matter. This system is perfectly suited for shear walls, columns, and foundations in medium to large-scale projects. It also excels in demanding applications such as skyscrapers, bridges, tunnels, and hydro-structures.
This makes the product particularly suitable for buyers looking at:
commercial and residential wall construction
columns and core wall applications
foundations and ground beams
infrastructure and utility structures
projects where repeated panel cycling improves cost efficiency over time
Before sending an inquiry for a steel frame formwork system, B2B buyers usually benefit from checking five points.
Our system is designed to handle an allowable pressure range of 60–80 kN/m², depending on the specific configuration.Buyers should confirm whether the intended pour speed, wall height, and structural geometry align with the proposed setup.
Because the system uses standard heights and widths, panel planning should be tied to the project’s most common wall and column modules. This helps minimize unnecessary adjustments and improves cycle efficiency.
We offer multiple facing options, including bamboo plywood, film faced plywood, steel, and advanced composite plastics. The best option may vary depending on required finish, expected reuse cycles, local climate, and maintenance preferences.
Tie rods, hooks, wedge pins, water stop plates, pry bars, and related accessories are part of the overall system logic. Buyers should evaluate the full package, not only the main panels.
Beyond manufacturing, we provide comprehensive support including formwork and scaffolding sales, logistics, engineering.
A formwork system is easier to evaluate when the supplier can support both product supply and application understanding. Since 2009, Sichuan Taishenglan Technology Co., Ltd. has been a trusted supplier of scaffolding, formwork, and related construction materials. Our global footprint now covers more than 50 countries and regions. We provide a solution-oriented approach rather than a product-only presentation.
For procurement teams, that usually means a more practical discussion around configuration, packaging, transportation, application fit, and support workflow rather than a price-only conversation.
A steel frame formwork system is a practical choice for buyers who need better rigidity, faster assembly, cleaner concrete results, and repeatable performance across wall, column, and foundation work. In conclusion, this steel frame formwork system combines modular sizing, multiple panel options, and robust pressure capacity to suit a wide range of structural tasks.
Ready to optimize your formwork setup? [Contact Taishenglan today] to request a customized configuration based on your structure type, pour conditions, and reuse requirements.
