In the construction industry, the integrity of your formwork support system is non-negotiable. Whether you are pouring a concrete slab for a high-rise building or conducting delicate renovation work, the Adjustable Steel Prop (often referred to as an Acrow Prop or Shoring Post) is the backbone of site safety.
However, not all props are created equal. For project managers and procurement officers, distinguishing between high-quality shoring systems and inferior alternatives is critical for preventing structural failure and controlling long-term costs.
This guide explores the technical specifications of high-performance steel props and helps you select the right solution for your specific load-bearing requirements.
A scaffolding prop consists of three main components: the outer tube, the inner tube, and the adjustment mechanism (nut and pin). While the design seems simple, the manufacturing quality determines its safety factor.
At TSL Scaffolding, we prioritize three core engineering standards:
1. Material Integrity: We utilize high-strength Q235 steel, ensuring the prop resists buckling under heavy vertical loads.
2. Thread Precision: Our props feature roll-formed threads rather than cut threads. This retains the steel's structural integrity and ensures the adjustment nut moves smoothly, even when concrete splash is present.
3. Surface Durability: To combat rust and corrosion in harsh site environments, we offer premium surface finishes, including Hot Dip Galvanization (HDG) and Electro-Galvanization, significantly extending the product's lifespan.
One of the most common questions we receive from our global clients is: "Which type of prop do I need?"
Selecting the wrong specification can lead to overspending (using heavy props for light work) or, more dangerously, structural instability (using light props for heavy loads).

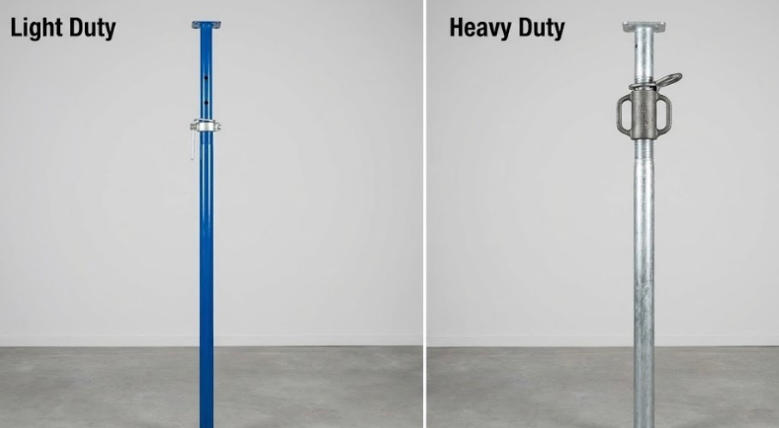

Below is a technical comparison of our standard manufacturing capabilities:
Feature | Light Duty Prop (Spanish/Italian Type) | Heavy Duty Prop (Middle East/German Type) |
Typical Application | Residential housing, light renovation, lintel support. | Commercial high-rises, heavy civil engineering, bridge construction. |
Outer Tube Diameter | 48mm / 56mm | 60.3mm |
Inner Tube Diameter | 40mm / 48mm | 48.3mm |
Wall Thickness | 1.6mm – 2.0mm | 2.0mm – 4.0mm (Customizable) |
Load Capacity | Low to Medium | High (Designed for maximum safety margins) |
Adjustment Mechanism | Cup Nut or Sleeve Nut | Heavy Duty Cast Iron Nut with Handle |
Base Plate | 120x120mm (Flat or Flower type) | 120x120mm (Reinforced Square) |
Note: Specific load capacities depend on the extension height. Always consult the TSL technical data sheet before installation.

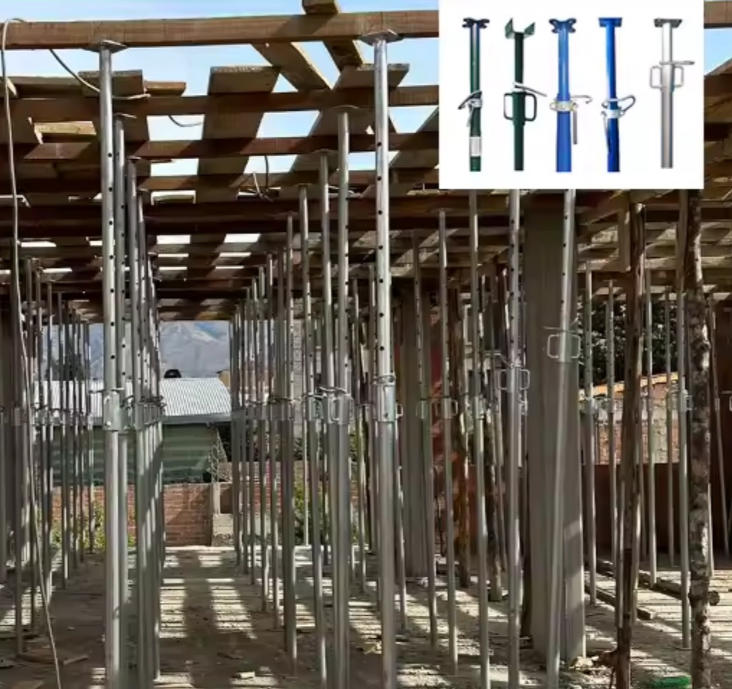

Why do contractors worldwide choose TSL as their shoring partner? It comes down to design details that save time and money on-site.
Our props are designed with safety stops to prevent the inner tube from sliding out completely during adjustment. Additionally, we provide high-grade G-Pins or Line Pins that secure the height adjustment firmly, eliminating the risk of slippage under load.
The top of the prop is designed for versatility. Depending on your formwork system, you can choose:
Standard Flat Plate: For supporting timber or steel beams directly.
U-Head Jack: For securely holding H20 timber beams or steel channels.
Forkhead: For specialized table formwork systems.
While painted props are cheaper initially, they require frequent replacement due to corrosion. Galvanized Steel Props from TSL offer a higher Return on Investment (ROI). They can withstand years of exposure to rain, sun, and concrete, making them an asset that retains value for rental companies and contractors alike.
When ordering, consider the "Open" and "Closed" heights. You need a prop where your working height falls comfortably within the extension range—never at the absolute maximum limit, as load capacity decreases as the prop extends.
Common Size Ranges Available:
1.60m – 2.90m
2.00m – 3.60m
2.20m – 4.00m
2.50m – 5.00m
Your shoring system is the foundation of your project's safety. Don't compromise with low-grade steel or poor welding.
TSL Scaffolding is dedicated to manufacturing adjustable steel props that meet rigorous international standards. We provide not just a product, but a guarantee of stability.
Ready to secure your next project?
Contact TSL Scaffolding Today for a competitive quote and detailed load capacity charts. Let our engineering team help you select the perfect shoring solution.
